Reefer 170 G2+ Deluxe

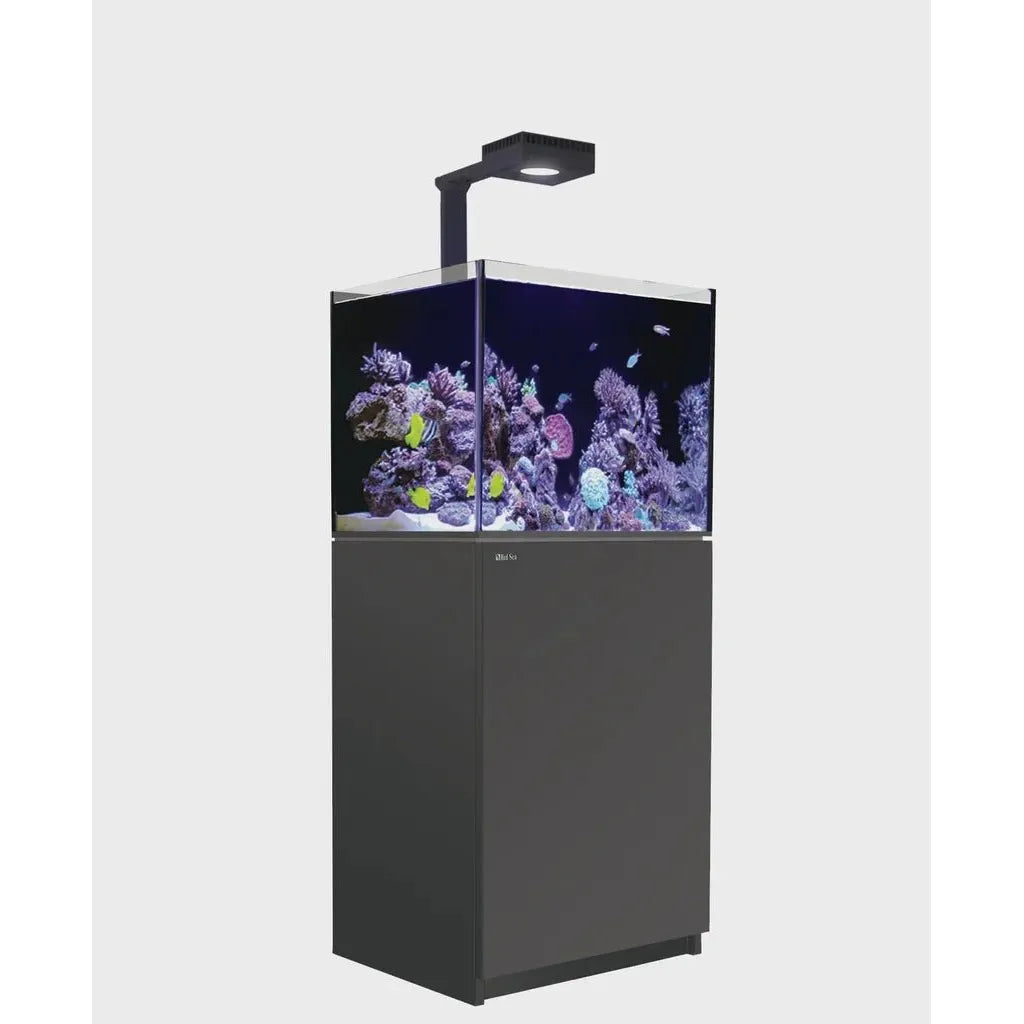

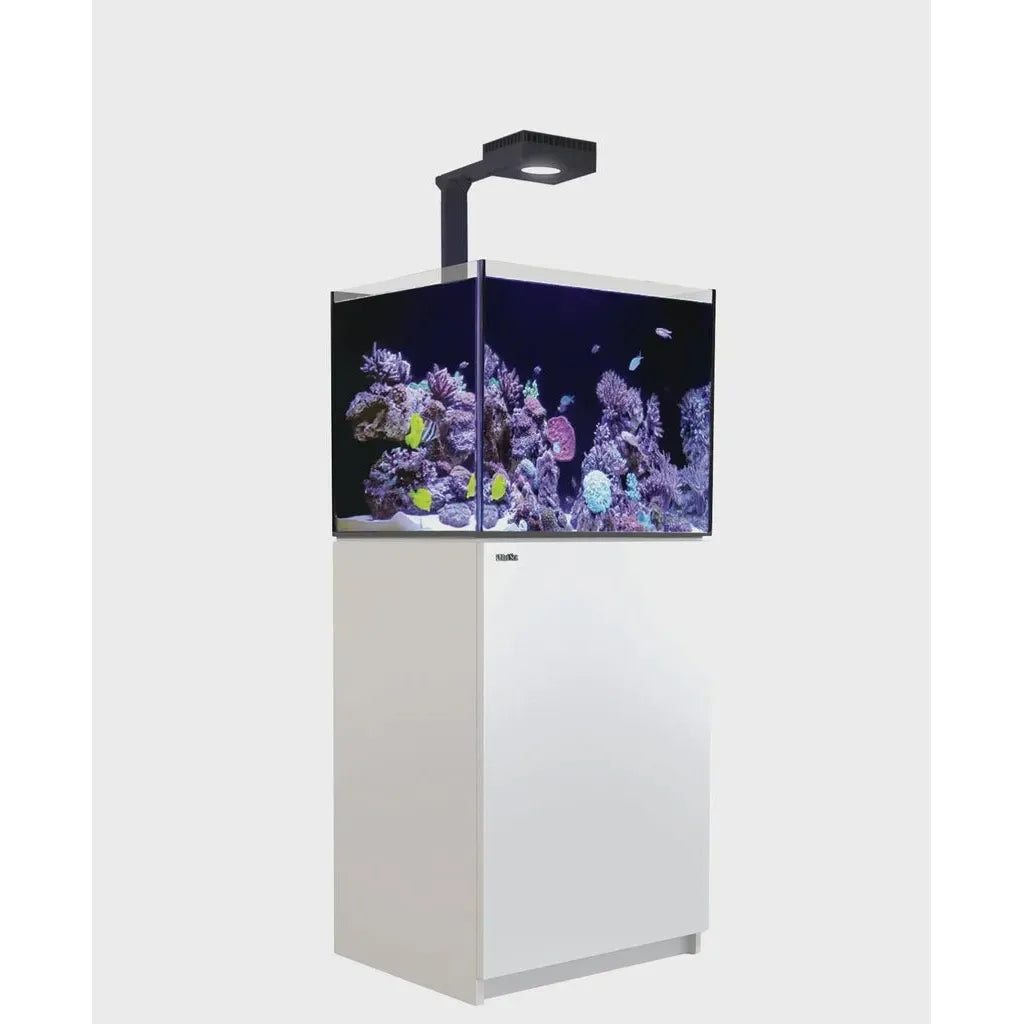

Red Sea REEFER Deluxe 170 G2+ – Compact, Reef-Ready System with Smart Lighting

The Red Sea REEFER Deluxe 170 G2+ is a fully featured, compact reef aquarium system designed for hobbyists who want premium equipment, smart technology, and elegant design—all in a space-saving footprint. With a total system volume of 165 litres, this Deluxe model includes all the advanced features of the G2+ series, plus Red Sea’s ReefLED® 90 light and slide-out mounting arm, pre-installed for a clean, professional look and exceptional coral performance right out of the box.

Whether you're starting your first reef or adding a high-end nano-style display to your collection, the REEFER Deluxe 170 G2+ offers smart simplicity without compromise.

Key Features

Integrated ReefLED® 90 Lighting

• Includes 1 x ReefLED® 90 light and Red Sea slide-out mounting arm

• Full-spectrum reef-safe lighting with UV, violet, blue, and 9,000K white channels

• Dedicated moonlight mode for natural night-time viewing

• Wi-Fi control via the ReefBeat® app with access to pre-set lighting schedules, sunrise/sunset transitions, cloud simulation, and acclimation mode

Smart ReefATO+ System Included

• 3-in-1 automatic top-off with:
  – Titanium water level sensor
  – Digital temperature monitor (accurate to 0.1°C)
  – External leak detector with audible alerts

• Quiet, low-power pump with:
  – Max flow: 283 L/h
  – Max head height: 2 m
  – Power consumption: 6–10W

• Built-in safety shut-offs and full app control via ReefBeat

Ultra-Clear, Rimless Display Tank

• Constructed from ultra-clear bevelled-edge glass

• 10 mm thick (front and bottom), 12 mm thick (sides)

• Dimensions: 60 cm (L) x 50 cm (W) x 51 cm (H)

• Clean, rimless design for an unobstructed view

Marine-Spec Cabinetry

• Reinforced water-resistant plywood cabinet

• Stainless steel hardware and adjustable levelling feet

• Matches the tank footprint with a total height of 137 cm

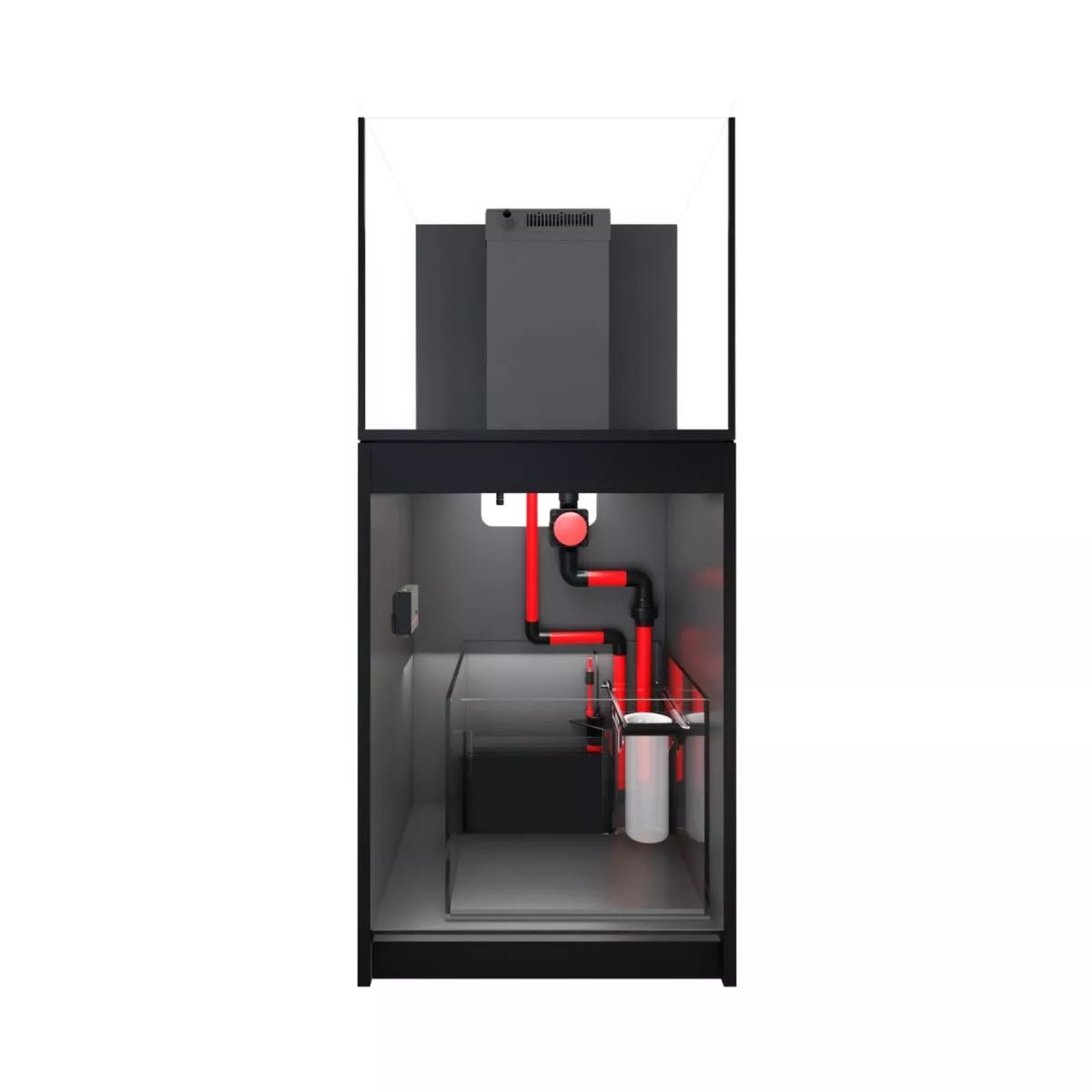

Advanced Water Management System

• Central rear overflow with removable weir comb

• Silent downflow via enlarged rectangular pipe and high-precision valve

• Dual-drain configuration with:
  – 32 mm main drain
  – 25 mm emergency drain
  – 25 mm return plumbing

• Pre-glued plumbing with both metric and imperial bulkhead connectors

Professional Sump Filtration System

• Total sump volume: 37 litres

• Mechanical filtration chamber with micron sock and filter cup

• Adjustable-height skimmer chamber

• Bubble trap to reduce microbubbles

• Built-in RO reservoir for stable ATO operation

• Fully compatible with ReefMat 500 (sold separately)

System Specifications

• Total System Volume: 165 L

• Display Tank Volume: 128 L

• Sump Volume: 37 L

• Display Tank Dimensions: 60 cm (L) x 50 cm (W) x 51 cm (H)

• System Height (incl. cabinet & lighting): 137 cm

• Glass Thickness: 10 mm (front/bottom), 12 mm (sides)

• Drain Plumbing: 32 mm main, 25 mm emergency

• Return Plumbing: 25 mm

• ATO Pump Max Flow: 283 L/h

• ATO Pump Max Head Height: 2 m

• ATO Pump Power: 6–10W

Warranty

Includes a 2-year standard warranty, extended to 3 years with online registration.
