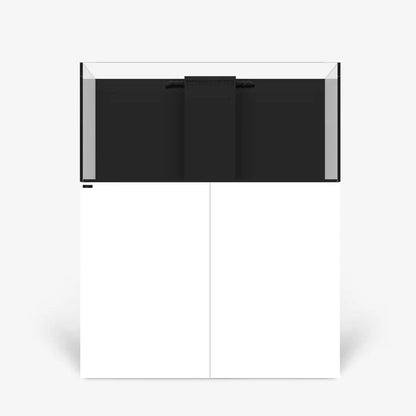

Marine X 110.4 Set

The Waterbox Marine X 110.4 is the largest model in the Marine X series, offering expansive space, top-tier filtration, and professional design features for reef aquarists who demand excellence. With ultra-clear low iron glass, dual return nozzles, and a fully integrated sump system, it’s built for thriving reef ecosystems in style.

Display Volume: 301 L
Total System Volume (incl. RO): 418 L
Display Tank Dimensions: 1200 × 500 × 550 mm
System Height (with Cabinet): 1450 mm
Glass Thickness (Display Tank): 12 mm ultra-clear low iron glass (front and sides)
Light Transmittance: 91%

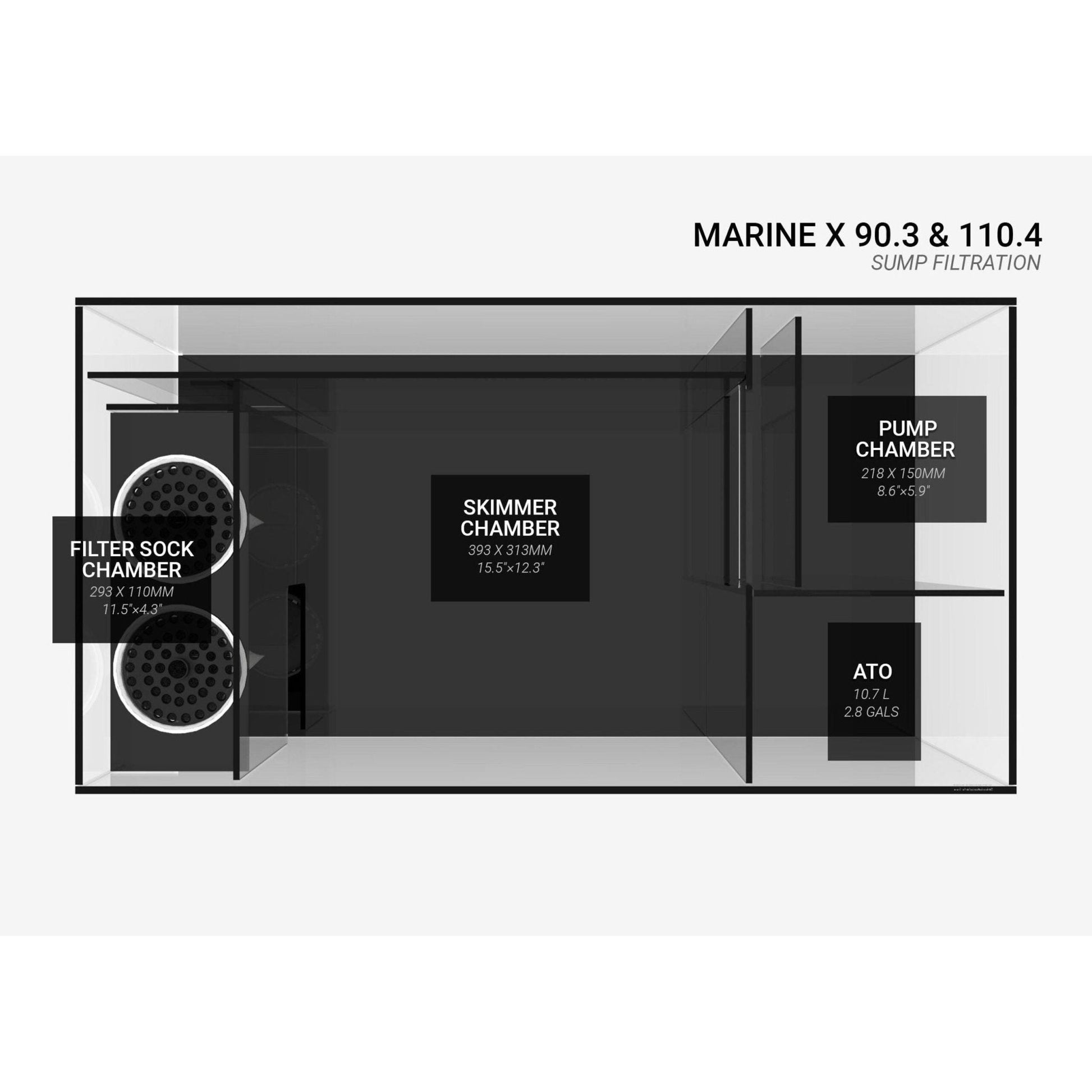

Sump Volume: 117 L
Sump Dimensions: 800 × 410 × 380 mm
Glass Thickness (Sump): 6 mm
Skimmer Chamber (Internal Dimensions): 388 × 343 mm
Pump Chamber (Internal Dimensions): 210 × 150 mm
RO Reservoir Volume: 18.3 L
RO Reservoir Dimensions: 210 × 243 × 359 mm

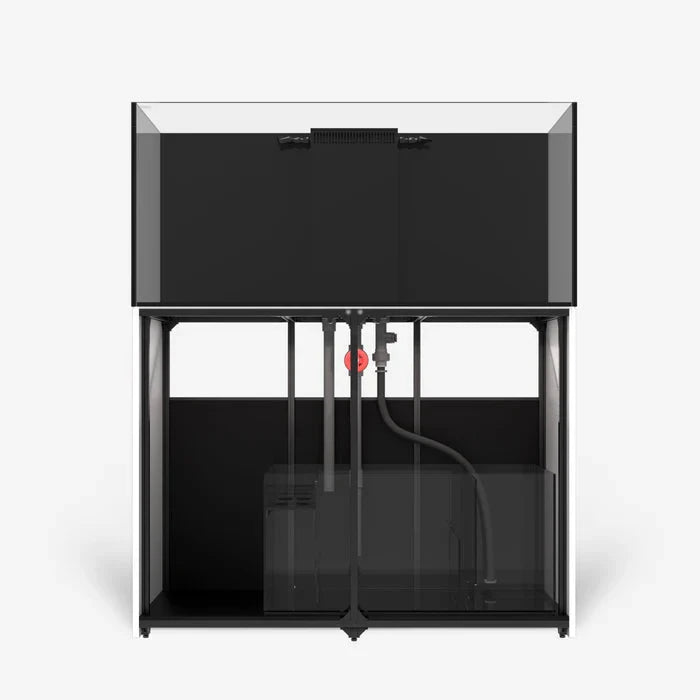

Plumbing:

• Factory-glued, pre-assembled piping

• Main Drain: DN25 (32 mm)

• Emergency Overflow: DN25 (32 mm)

• Pump Return: DN20 (25 mm)

• Dual Return Nozzles: 2 × DN15 (20 mm)

• High precision gate valve

• Noise-reducing overflow lid

Filtration:

• 2 × 105 mm (4″) mesh filter socks with silencers

• 4-stage sump layout

• Roller mat compatible

Cabinet Model: ALU 4820
Cabinet Dimensions: 1200 × 500 × 900 mm
Sump Compartment (Internal): 1124 × 440 × 813 mm
Frame: Anti-corrosion aluminium alloy
Panels: 18 mm PVC laminated wood particle board (doors/sides), 10 mm PVC bottom, 6 mm PVC back
Hinges: SUS304 stainless steel
Extras: Soft-close doors, levelling feet

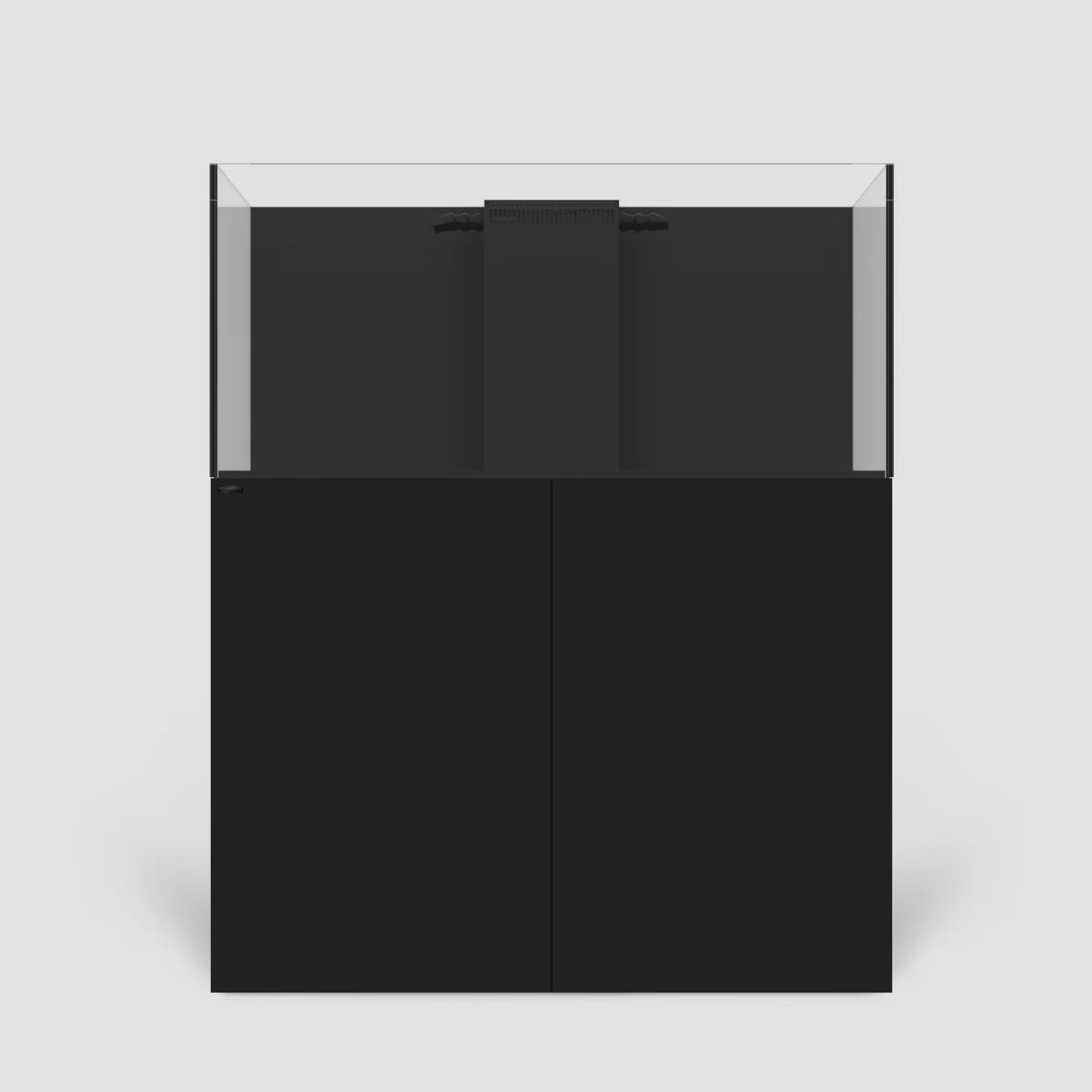

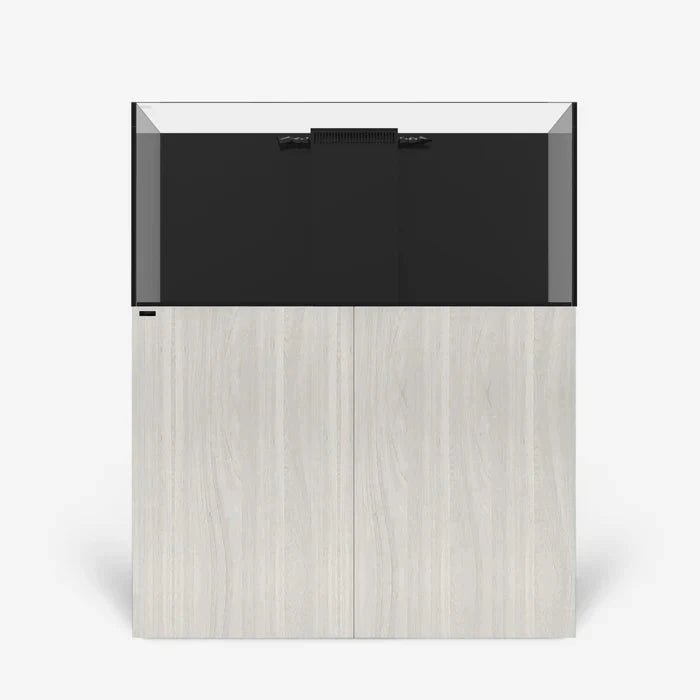

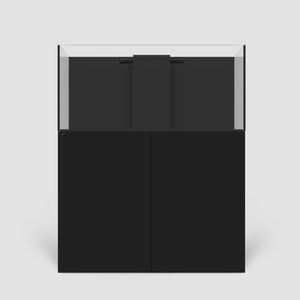

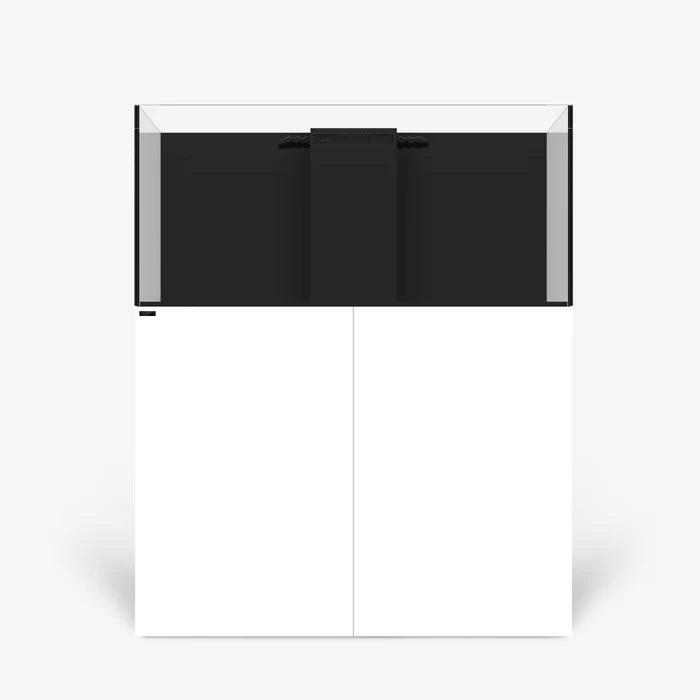

Cabinet Colours: Black, White, Aspen

Optional Accessories:

• Manifold 15D (double outlet)

• Mesh aquarium lid (MT MX 110.4)
